Компактные реле мощности Omron
Omron stands as a globally recognized leader in electromechanical solutions, renowned for its high-quality electromagnetic relays. Today, we are excited to highlight the exceptional G5PZ series – a top choice for engineers and designers seeking reliable power switching.
The G5PZ series comprises high-performance electromagnetic power relays engineered to handle substantial currents up to 16A or 20A (at resistive loads up to 250V AC). This robust capability makes them ideal for diverse applications, including industrial automation, office equipment, and home appliances. Designed for through-hole mounting (THT), they integrate seamlessly onto printed circuit boards (PCBs).
Key advantages of the G5PZ relays include their compact design and notably slim profile (only 10.5 mm). Each relay features a single-pole, single-throw (SPST) contact configuration, controlled by a coil with nominal voltages of 5V, 12V, or 24V DC (model-dependent). Omron ensures superior safety with high insulation (10 kV) between the coil and contact circuit. With coil power consumption under 530 mW and an extended operating temperature range from -40°C to 70°C, these relays meet the demands of most challenging environments.

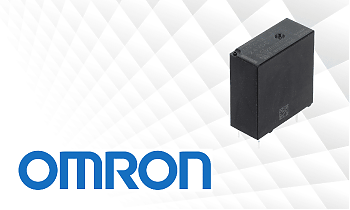

Electromagnetic Relay G5PZ-1A-24DC – A reliable solution for automation and control systems.
Omron Relays: Trusted for durability and precision in electromechanical components.
| Characteristic | Value |
|---|---|
| Relay Type | Electromagnetic |
| Relay Version | Miniature |
| Series | G5PZ |
| Contact Configuration | SPST-NO |
| Coil Nominal Voltage* | 5V, 12V, 24V DC |
| Switching Voltage | Max. 250V AC |
| Contact Rating AC @R | 16A / 250V AC or 20A / 250V AC |
| Max. Contact Current* | 16A or 20A |
| Coil Current* | 22.1–106 mA |
| Coil Resistance* | 47–1087 |
| Contact Resistance | 100 m |
| Mounting | PCB |
| Dimensions | 23.8 10.3 24.9 mm |
| Operating Temperature | -40 to 70°C |
*Varies by model
| Model | Coil Voltage [V DC] | Max. Contact Current [A] | Coil Current [mA] | Contact Rating AC [A / V AC] |
|---|---|---|---|---|
| G5PZ-1A-12DC | 12 | 16 | 44.1 | 16 / 250 |
| G5PZ-1A-24DC | 24 | 16 | 22.1 | 16 / 250 |
| G5PZ-1A-5DC | 5 | 16 | 106 | 16 / 250 |
| G5PZ-1A-E-12DC | 12 | 20 | 44.1 | 20 / 250 |
| G5PZ-1A-E-24DC | 24 | 20 | 22.1 | 20 / 250 |
| G5PZ-1A-E-5DC | 5 | 20 | 106 | 20 / 250 |
